Air Cooled Heat Exchangers

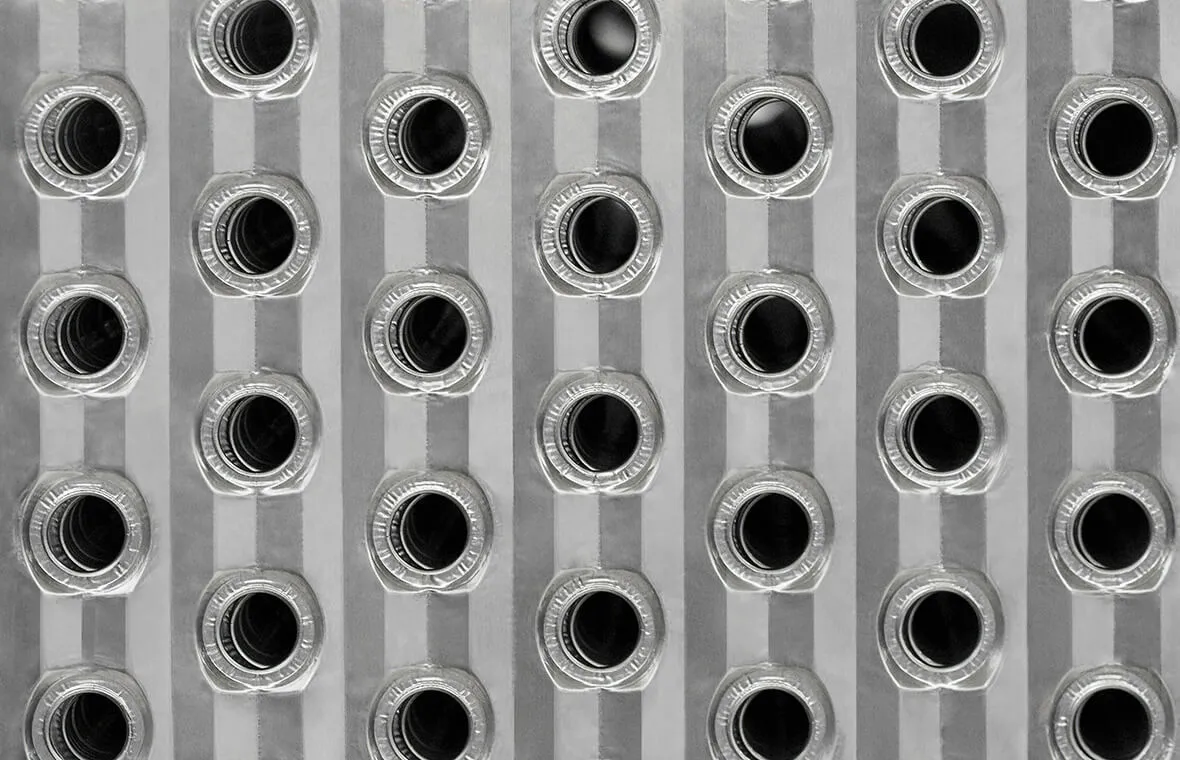

Plate Fin Tube Heat Exchanger

Hot Water Heating or Chilled Water Cooling coils can be designed and manufactured for all of your Air Conditioning, Space Heating, Process Heating or Cooling applications. Coils can be designed to specification, or built to customer drawing or sample. Standard materials of construction are Copper Tubes and Headers with Raw Aluminium Fins but coils are available in many other materials including All Stainless Steel Construction. All Water Coils are based on counter flow Air to Water to ensure maximum Heat Transfer Capacity. Heat Exchangers can be circuited for Vertical Air Flow or Horizontal Airflow. Coils are also available for the Cooling of Compressed Air.

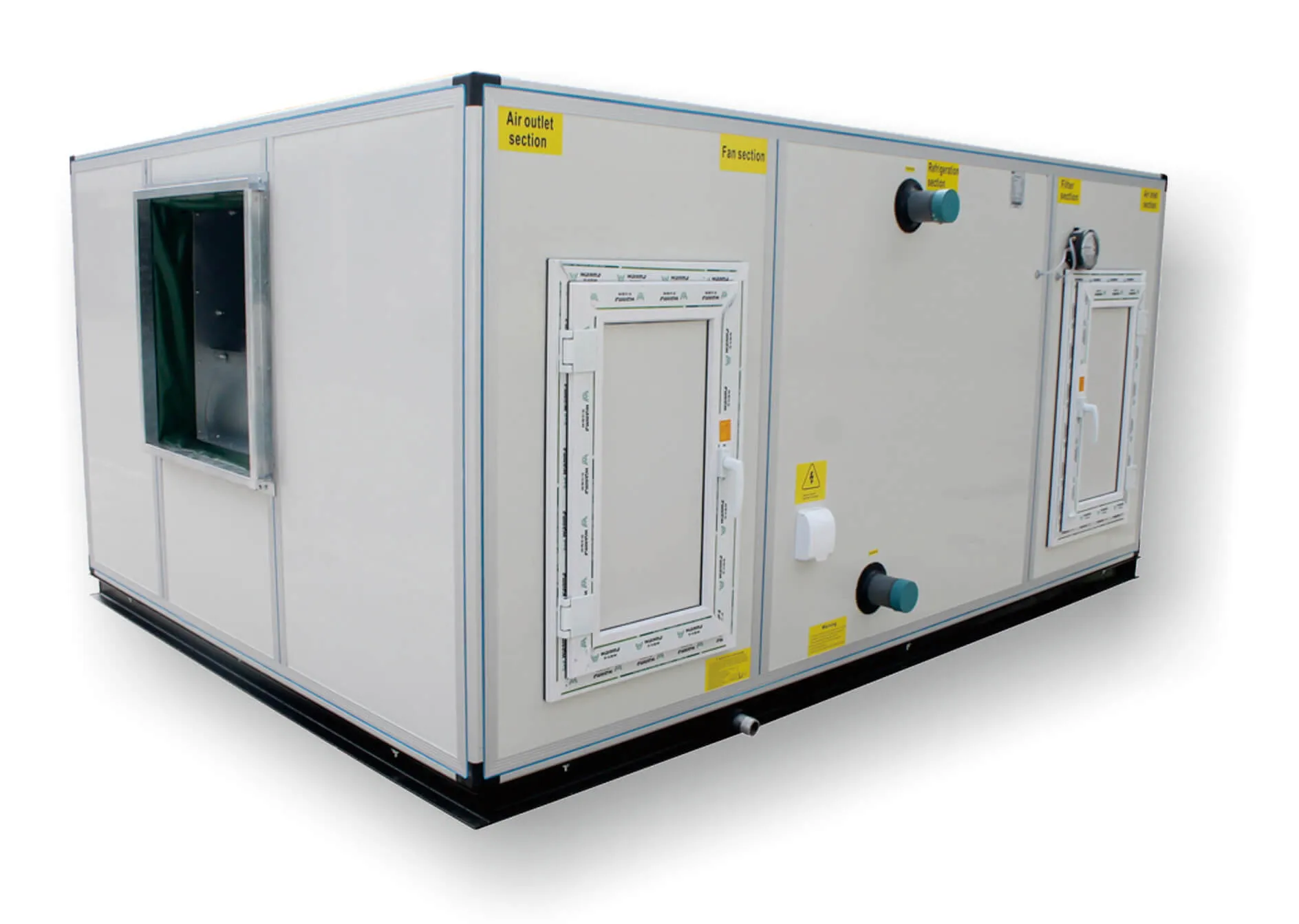

AIR HANDLING UNIT

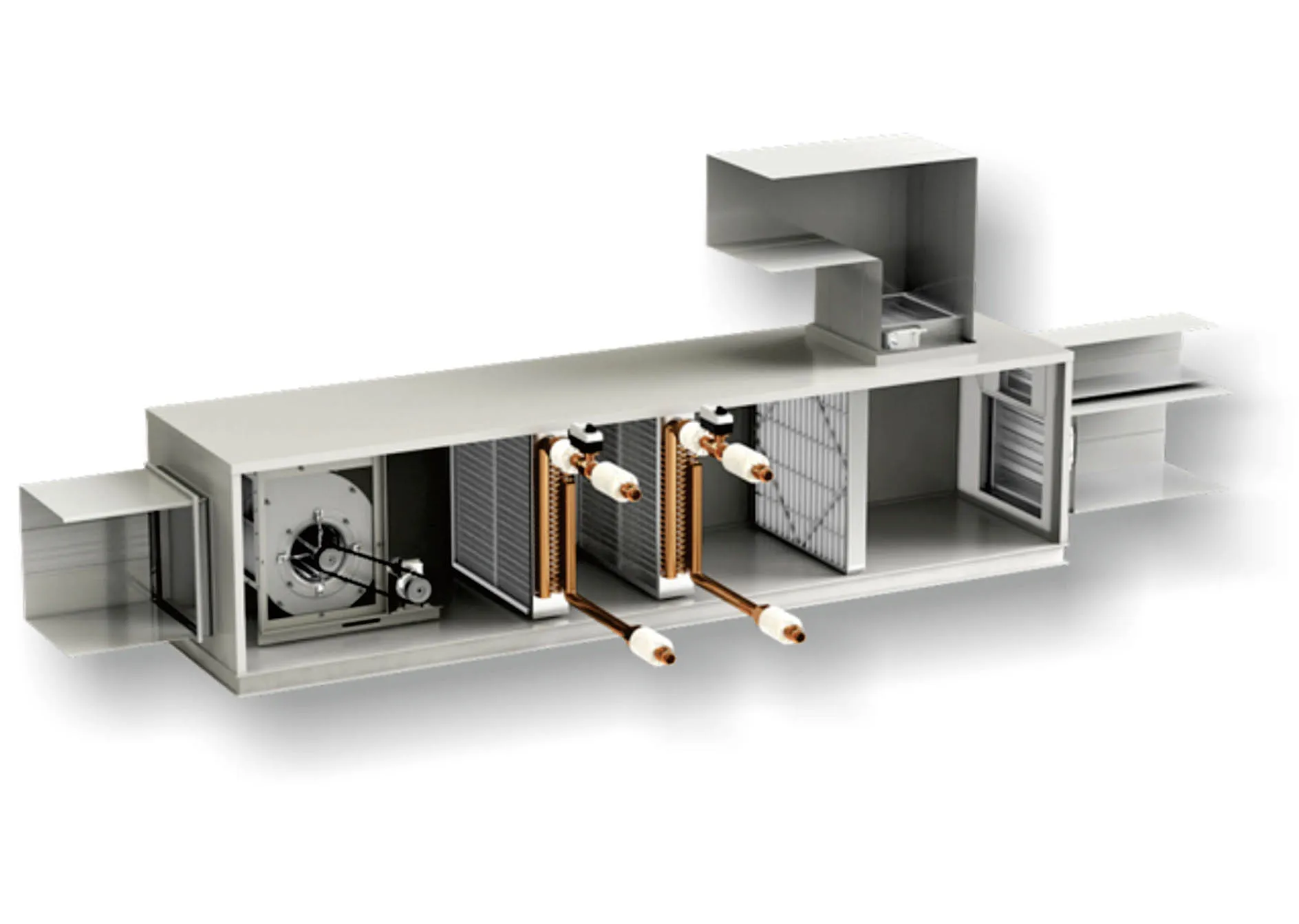

COOLING and DEHUMIDIFYING for HVAC

STAINLESS STEEL COIL

SUS 3016 TUBE , SUS 304 FIN

EVAPORATOR AND CONDENSER FOR HVAC or REFRIGERATION

WATER COIL FOR HEATING OR COOLING

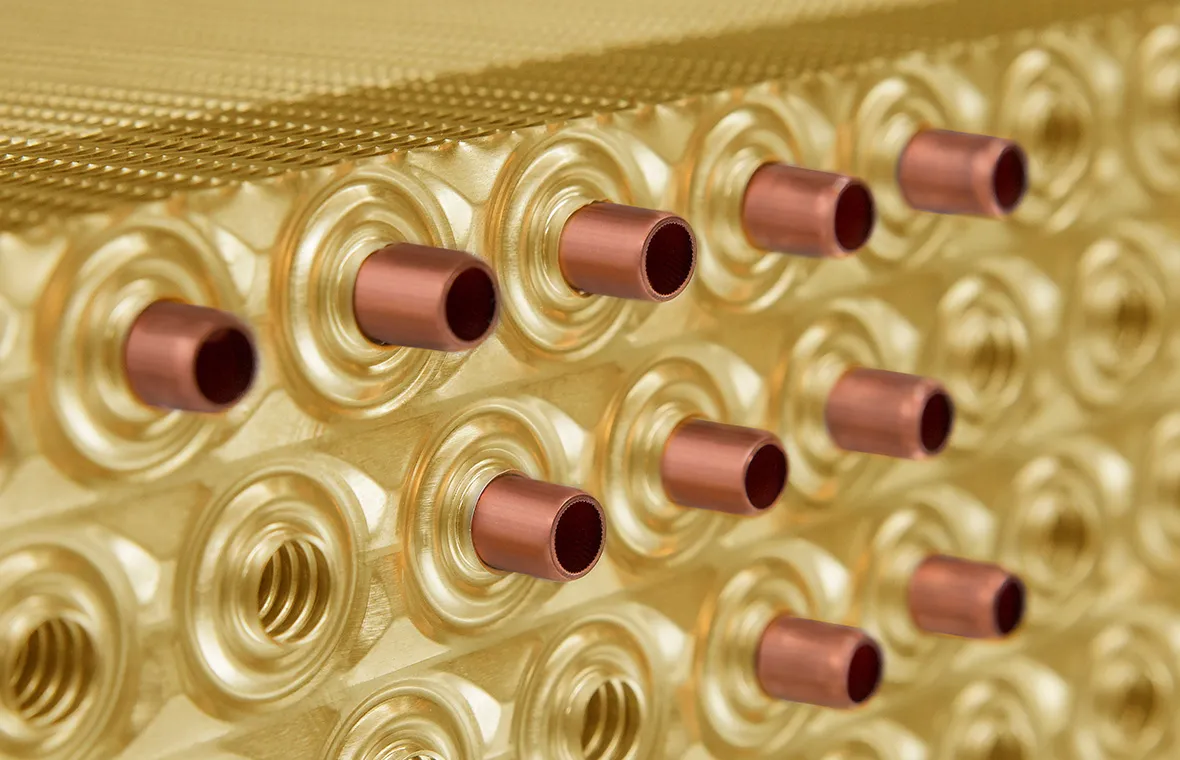

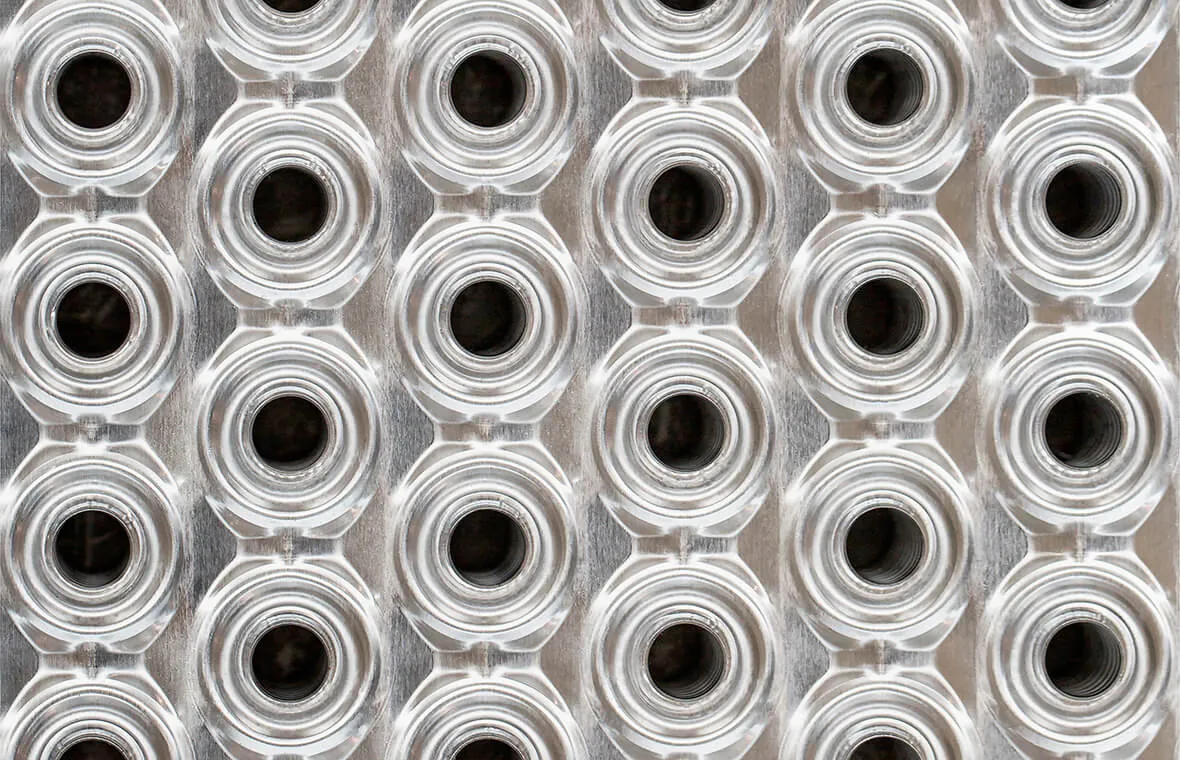

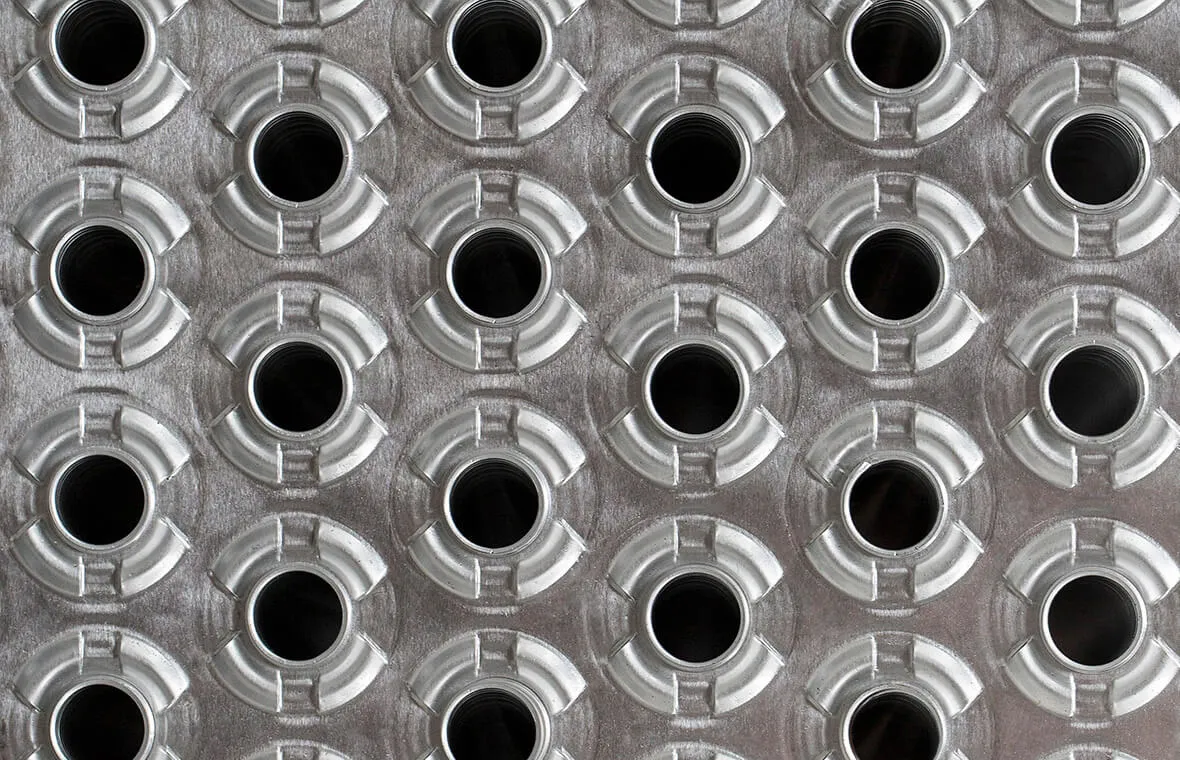

Plate Fin Tube material:

Tube: Cooper; Copper alloy: AISI 304; AISI 316; Titanium
Tube Size: 9.5;  12.7; 15.875 mm.OD
Fin: Aluminium A 1050; A 1060; Blue Fin Copper; AISI 304; AISI 316

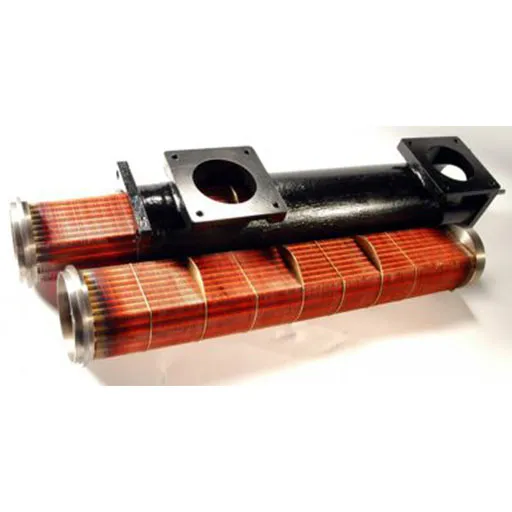

CHARGE AIR COOLER

INTER COOLER / AFTER COOLER
